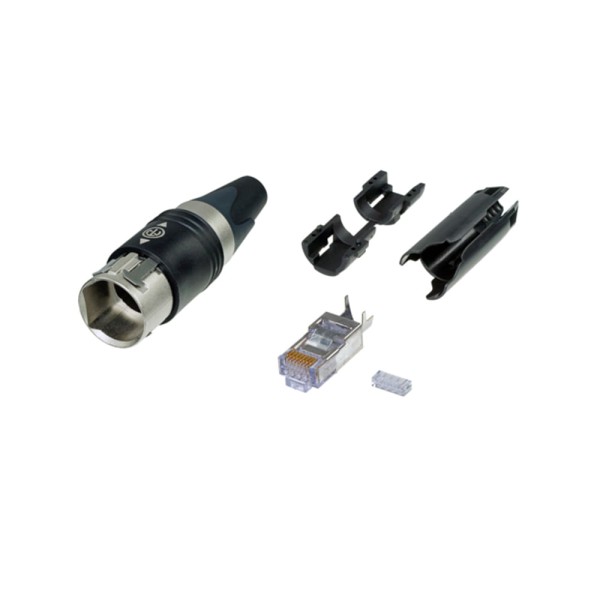

Conector Neutrik de Cabo/Linha RJ45 CAT6 Macho NE8MC6-MO
Histórico de preços
Ficha Técnica e Modo de uso:
Conector de cabo/linha RJ45 CAT6 com taxa de até 10 Gbit/s, com corpo em metal no formato XLR linha”XX”, para cabo de 5,5mm até 6,5mm e bitola de cabo 22 a 28 AWG.
Proteção contra água categoria IP65.
Características
- Em conformidade com as especificações CAT6 de acordo com TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65 – À prova de poeira e à prova d’água
- Acoplamento Push Pull – sistema de travamento seguro e comprovado
- Código de cores com o acessório BXX- * – para garantir a proteção IP65, a boot deve ser montada com anel metálico de NE8MC6-MO
- Compatível com CAT6 – taxa de dados de até 10 GBit / s
- Sistema blindado – alta imunidade a ruídos e proteção contra EMI
- Alívio de tensão exclusivo do tipo chuck da Neutrik
Como quem comprou avalia este produto
April 29 2025
where can i find this tuff tactical cat6 cable , i wanna purchase a 1000ft
April 29 2025
Hi Billy! Thanks for making this great video. It really helped me out. Q A: do you pin out both ends with the same "B standard" wire order? Or A at one end and B on the the other end?
Cheers!
April 29 2025
Couple of things. Not meaning to sound like a smart arse. Don’t pull the cassette apart. Don’t remove the black holder off until all wires are fed in. Also with the split clamp shell just push the cable clamp up and that will hold the 2 bits of metal together before you push it into the barrel.
April 29 2025
I use channel locks instead of a vice grip, but those are good too. I have never seen that “flattener” to this day. I’ve heard stories of it, it’s out there in the wild.
April 29 2025
Don’t take the guide plastic out. Crimp before. This is a bad video. The neutrik instructions does not recommend this.
April 29 2025
Hi Billy, wanted to know your thought of using BELDEN datatuff over BELDEN 1303EPU cat snake cable.
April 29 2025
can you use those yellow strippers to cut the outer jackets of balance 4-way and 8-way multicore cable? cheers
April 29 2025
It’s a real nightmare… at list for my abilities. I hope there is an alternative of simpler kind of ethercon connector so that it’s a little easier to mount the cable.
