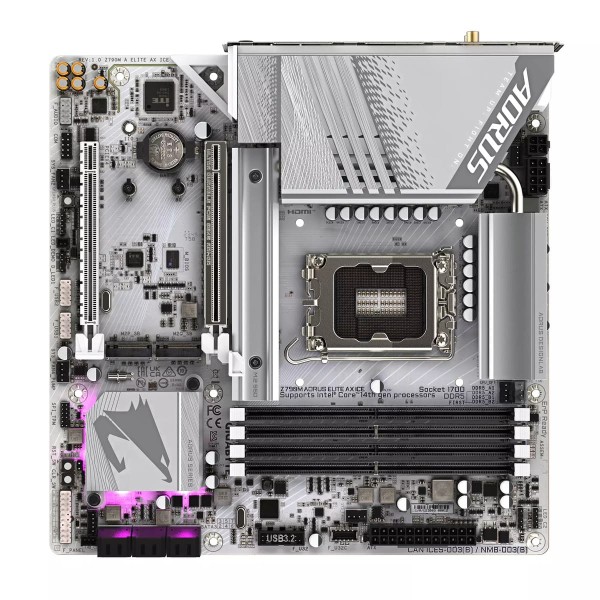

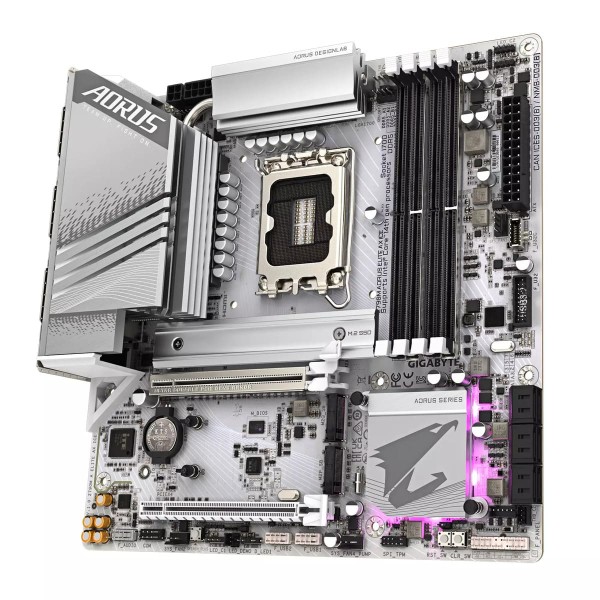

Placa Mae Gigabyte INTEL Z790M Aorus Elite AX ICE MATX LGA 1700 M.2 NVME WI-FI 4XDDR5 MAX. 192GB 1X
Histórico de preços
Ficha Técnica e Modo de uso:
0 e rodando em x16 (PCIEX16)* Para obter desempenho ideal, se apenas uma placa gráfica PCI Express for instalada, certifique-se de instalá-la no slot PCIEX16.
Chipset:1 x slot PCI Express x16, suportando PCIe 4.
0 e rodando em x4 (PCIEX4)Conectores Internos I/O1 x conector de alimentação principal ATX de 24 pinos1 x conector de alimentação ATX 12V de 8 pinos1 x conector de alimentação ATX 12V de 4 pinos1 x cabeçalho do ventilador da CPU1 x cabeçote de ventilador de CPU de resfriamento de água3 x conectores de ventilador do sistema1 x ventilador do sistema/cabeçalho da bomba de resfriamento de água2 x cabeçalhos de faixa de LED endereçáveis2 x cabeçalhos de faixa LED RGB3 conectores de soquete M.
2 36 x conectores SATA 6 Gb/s1 x cabeçalho do painel frontal1 x cabeçalho de áudio do painel frontal1 x conector USB Type-C® , com suporte para USB 3.
2 Gen 21 x conector USB 3.
2 Gen 12 x conectores USB 2.
0/1.
12 x conectores de placa adicional Thunderbolt1 x cabeçalho Trusted Platform Module (somente para o módulo GC-TPM2.
0 SPI/GC-TPM2.
0 SPI 2.
0)1 x cabeçalho de porta serial1 x botão de reinicialização1 x botão Q-Flash Plus1 x botão CMOS claro1 x jumper de redefiniçãoConectores Painel Traseiro1 x porta USB Type-C® , com suporte para USB 3.
2 Gen 2x21 x porta USB 3.
2 Gen 2 Tipo A (vermelha)4 portas USB 3.
2 Gen 14 portas USB 2.
0/1.
12 x conectores de antena SMA (2T2R)1 porta HDMI 2.
01 x porta de exibição1 porta RJ-451 x conector de saída óptica S/PDIF2 x tomadas de áudioBIOS1 flash de 256 MbitsUso de BIOS UEFI AMI licenciadoPnP 1.
0a, DMI 2.
7, WfM 2.
0, SM BIOS 2.
7, ACPI 5.
0Sistema OperacionalSuporte para Windows 11 de 64 bitsSuporte para Windows 10 de 64 bitsFator de formaFator de forma Micro ATX; 24,4 cm x 24,4 cm
Como quem comprou avalia este produto
April 20 2025
I have the B650M of this, and it is very stable with 7800X3D and 32GB 6000HZ CL30. Boot is very fast and no issues.
April 20 2025
hey, great review. Does this board have the coil whine that everyone is bashing Gigabye about? Im on the fence about getting the black version of thos board. Specs look like a great match for the the current core series chips
April 20 2025
Can you please suggest 1 among these 3 for a 13700k build please.
1. Z790 Aorus Elite AX ICE
2. Gigabyte z790 gaming x ax
3. MSI pro z790 A Max Wifi
Also can you please let me know what are the reasons for your suggestion..
April 20 2025
Is the 2D M.2 SSD heat sink provided on this motherboard better or the 3D heat sink provided on Crucial SSD better. The 3D heat sink wont fit in the slot besides GPU. Kindly suggest..
April 20 2025
holy f how did you unscrew the left screw on the radiator? mine is stuck in a death grip
April 20 2025
sir ,, i used i5-13400f , 32 gb ram, gpu rtx 4060 , smps 700 gold with liquid cooler 240mm radiator........on this board ..Gigabyte Z790M AORUS Elite AX matx .. i need to know my pc build is good enough or not ,, i choose everything according to my budget. i dont have much but yes i did
April 20 2025
Hey man thanks for the awesome review, I’m planning to build my first pc so i have few questions
1. When all 4 ram slots are being used does this board still give 7600 speed on all slots
2. I’ve heard about lane switching and can’t understand anything about it through yt videos so do i have to care about placing ssd and gpu on particular slots or something like that
3. I’m waiting for the launch of rtx 5080, will this board will support it?
April 20 2025
can i install Gen 5 ssd on this motherboard i have crossir mp700 pro please
April 20 2025
Better than most full sized z790m. The power solution and thermals are better than full sized MSI and most Asus Z790 boards. Gigabyte has not skimped. No issues at all running the top end LGA1700 cpu’s with the right cooling.
![Tela DLED 39 HD Multi 2 HDMI 1 USB - TL028OUT [Reembalado] TL028OUT](https://encontraproduto.com.br/images/8584100583255/68747470733a2f2f726968617070792e767465786173736574732e636f6d2f6172717569766f732f6964732f363633353337312f31373231323434343938303331362e6a70673f763d363338363239323239353336393030303030.jpg)

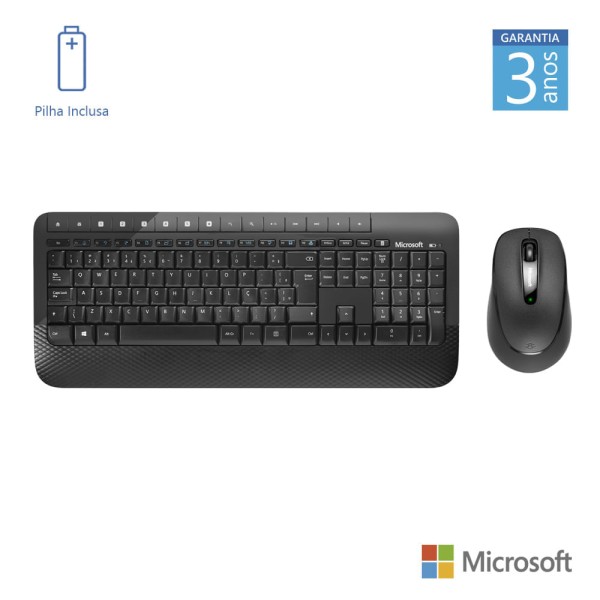

![Combo Microsoft Teclado e Mouse Sem Fio Desktop 2000 Usb Preto - M7J-00021OUT [Reembalado] M7J00021OUT](https://encontraproduto.com.br/images/9361845740168/68747470733a2f2f726968617070792e767465786173736574732e636f6d2f6172717569766f732f6964732f363731343133312f31373237323233363231353733302e6a70673f763d363338363331353936333432333330303030.jpg)
